OPTIONAL PABX | CARD PABX | SOFTWARE PABX | HARDWARE PABX
AUTO ATTANDANT | DOORPHONE | ARESTER - GROUNDING | MUSIC ON HOLD | PANASONIC | NEC | LG ERICSSON
CARD SOFTWARE PABX
CARD SOFTWARE PABX

OPTIONAL | CARD Dan SOFTWARE PABX PANASONIC KX-TDA100D

CARD EXPAND PANASONIC

KX-TDA100D

Harga Card Expand Coline Untuk TDA100D
KX-TDA 0180 : 8 Port Analog Trunk Card  Call

Harga Card Expand SLT TDA100D
KX-TDA 1176 : 16 Port Card Single Line Telephone Call
KX-TDA 1178  : 24 Port Card Single Line Telephone Call

Harga Card Expand DIGITAL TDA100D
KX-TDA 1171 : 8 Port Card Single Line Telephone Call
KX-TDA 1172  : 16 Port Card Single Line Telephone Call

BILLING SYSTEM SOFTWARE PANASONIC KX-TDA100D
DYNAMITE OFFICE Billing System Standart Office (belum trmsk pasang)    2.000.000
DYNAMITE HOTEL Billing System Standart Hotel (belum trmsk pasang)    3.500.000
BUDGETING OFFICE Billing System For Office (belum trmsk pasang)    2.800.000
BUDGETING HOTEL Billing System For Hotel (belum trmsk pasang)    5.000.000

AUTO ATTANDANT PANASONIC KX-TDA100D
EVM2006 2 Port, Bisa Greeting 2 Bahasa 3.500.000

OPTIONAL | CARD dan  SOFTWARE PABX PANASONIC KX-TES824 - TEM824

CARD OPTIONAL PANASONIC HT-SERIES
(KX-TES/TEM 824)
PANASONIC KX-TE82480X
KX-TE82480X
PANASONIC KX-TE82480X
2-Port Analog CO Line and 8 Port SLT
Call
PANASONIC KX-TE82480X
KX-TE82483X
PANASONIC KX-TE82480X
3-Port Analog CO Line and 8 Port Hybrid Ext.card
Call
KX-TE82474X  8-Port Single Line Telephone Ext. Card  Call
KX-TE82474X  Message Expansion Card for OGM  Call
KX-TE82492X  2 Channel Voice Message Card  Call
KX-TE82494X  3-Port Caller ID Card  Call
KX-TE82460X  2-Port Doorphone interface card*1  Call
KX-TE82461X  4-Port Doorphone interface card*2  Call

AUTO ATTANDANT PANASONIC KX-TES/TEM824
EVM20062 Port, Bisa Greeting 2 Bahasa2.500.000

Menerima Pasang Grounding Pabx, Jual Arester Pabx, dan Pasang Music tunggu (music On hold) Semua Merek Panasonic, NEC, LG,Dll
Keterangan lengkap mengenai produk Pabx Panasonic KX-TES824, Fitur (Fetaures List), kapasitas Sistem (System Capacity), Perangkat Tambahan (Option), Harga Pabx (Price List)

KX-TES824 adalah pabx yang dirancang khusus untuk memenuhi kebutuhan anda dalam system telekomunikasi terpadu baik itu dikantor maupun dirumah, dengan tujuan memberikan kemudahan pemakaian (user Friendly) , efesiensi biaya pemasangan dan perawatan.

Basic System Construction Panasonic KX-TES824

Kapasitas Dasar (basic capacity) Pabx Panasonic KX-TES824 adalah 3 Line (CO)- 8 Ekstensi, yang dapat di kembangkan (upgrade) hingga menjadi kapasitas 8 line (CO) 24 ekstensi. dengan menambahkan kartu tambahan (optional card required) yaitu KX-TE82483, KX-TE82480 atau KX-TE82474

Pbx Panasonic KX-TES824 Detail Produk
Pbx Panasonic KX-TES824 Detail Produk

System Conection Diagram Pabx Panasonic KX-TES824

Dibawah ini adalah diagram cara koneksi sistem pabx panasonic Kx-TES824 (klik gbr u memperbesar)


System Conection Diagram Pabx Panasonic KX-TES824
System Conection Diagram Pabx Panasonic KX-TES824
Keterangan:
Sambungkan display dilengkapi proprietary telepon (PT) ke jack  01, sebagai ekstensi ini
otomatis ditunjuk sebagai manajer ekstensi.
Sebuah PT dan sambungan telepon tunggal (SLT) dapat dihubungkan secara paralel ke Hybrid Port.


Detail Specifications Panasonic KX-TES824

Control Bus Original bus (16-bit, 24 MHz)
Switching Space Division CMOS Crosspoint Switch
Power Input 100 V AC to 240 V AC, 1.5 A to 0.75 A, 50 Hz/60 Hz
External Battery +24 V DC (+12 V DC × 2)
Maximum Power Failure Tolerance 300 ms (without using backup batteries)
Memory Backup Duration 7 years
Dialling Outside (CO) Line Pulse (10 pps, 20 pps) or Tone (DTMF)
Extension Pulse (10 pps, 20 pps) or Tone (DTMF)
Intercom Path 4
Mode Conversion Pulse-DTMF
Ring Frequency 20 Hz/25 Hz (selectable)
Operating Environment
Temperature 0 to 40, Humidity 10 % to 90 % (non-condensing)
Conference Call Outside (CO) Line 2
Music on Hold (MOH) 1 port
Selectable MOH: Internal/External/Tone
Paging Internal 1
External 1 port
Serial Interface Port RS-232C 1, USB 1.1 1
Extension Connection Cable SLT 1-pair wire (T, R)
PT 2-pair wire (T, R, H, L)
DSS Console 1-pair wire (H, L)
Dimensions 368 mm (W) × 284 mm (H) × 102 mm (D)
Weight (when fully expanded) Approx. 3.5 kg
°C 40°C


Characteristics
Terminal Equipment Loop Limit

  • PT 40 Ω
  • SLT 600 Ω including set
  • Doorphone 20 Ω
Minimum Leakage Resistance 15 000 Ω minimum


Maximum Number of Extension Instruments per Line
  • 1 PT or SLT in standard connection
  • 1 PT and 1 SLT in parallel connection
Ring Voltage 75 Vrms at 20 Hz/25 Hz depending on the ringing load
Outside (CO) Line Loop Limit 1600 Ω maximum
Hookswitch Flash/Recall Timing Range
24 ms–2032 ms
Door Opener Current Limit 30 V DC/30 V AC, 3 A maximum
Paging Terminal Impedance 600 Ω
MOH Terminal Impedance 10 000 Ω


Cards Pabx Panasonic KX-TES824

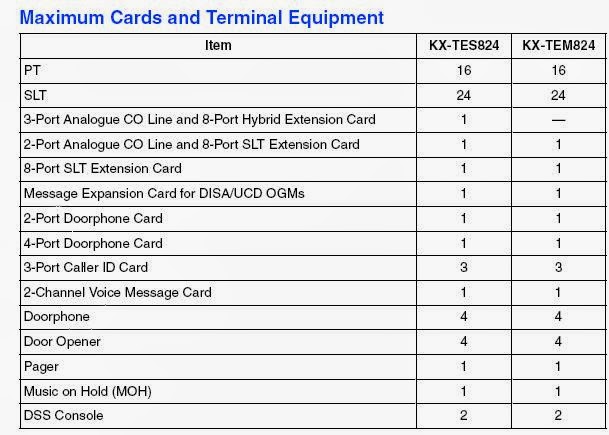

MAX Cards Pabx Panasonic KX-TES824

 FEATURES LIST PANASONIC KX-TES824

1 Call Handling Features
1.1 Incoming Call Features
1.1.1 Incoming Outside (CO) Line Call Features
1.1.1.1 Direct In Line (DIL)
1.1.1.2 Intercept Routing
1.1.2 Internal Call Features
1.1.3 Incoming Call Indication Features
1.1.3.1 Incoming Call Indication Features
1.1.3.2 Outside (CO) Line Ringing Selection
1.1.3.3 Ring Tone Pattern Selection
1.1.3.4 Distinctive Ring Detection (DRD) for New Zealand
1.1.3.5 Call Waiting
1.2 Receiving Group Features
1.2.1 Idle Extension Hunting
1.2.2 Uniform Call Distribution (UCD)
1.2.3 Direct Inward System Access (DISA) Ring
1.2.4 Log-in/Log-out
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
1.3.1 Call Forwarding (FWD)/Do Not Disturb (DND)
1.3.1.1 Call Forwarding (FWD)/Do Not Disturb (DND)OVERVIEW
1.3.1.2 Call Forwarding (FWD)
1.3.1.3 Do Not Disturb (DND).

1.4 Answering Features
1.4.1 Answering Features
1.4.1.1 Answering Features—OVERVIEW
1.4.1.2 Line Preference—Incoming
1.4.1.3 Call Pickup
1.4.1.4 Hands-free Answerback
1.5 Making Call Features
1.5.1 Intercom Call Features
1.5.1.1 Intercom Call
1.5.2 Outside (CO) Line Call Features
1.5.2.1 Outside (CO) Line Call Features—OVERVIEW
1.5.2.2 Emergency Call
1.5.2.3 Account Code Entry
1.5.2.4 Dial Type Selection
1.5.2.5 Reverse Circuit
1.5.2.6 CO Busy Out
1.5.2.7 Pause Insertion
1.5.2.8 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX)
1.5.3 Seizing a Line Features
1.5.3.1 Seizing a Line Features—OVERVIEW
1.5.3.2 Line Preference—Outgoing
1.5.3.3 Outside (CO) Line Access
1.6 Memory Dialling Features
1.6.1 Memory Dialling Features
1.6.1.1 Memory Dialling Features—OVERVIEW.
1.6.1.2 One-touch Dialling.
1.6.1.3 KX-T7710 One-touch Dialling
1.6.1.4 Redial
1.6.1.5 Speed Dialling—Personal/System.
1.6.1.6 Quick Dialling.
Feature Guide 7
1.6.1.7 Hot Line
1.7 Busy Line/Busy Party Features.
1.7.1 Automatic Callback Busy (Camp-on)
1.7.2 Executive Busy Override
1.7.3 Call Waiting Tone.

1.8 Toll Restriction (TRS) Features
1.8.1 Toll Restriction (TRS)
1.8.2 Toll Restriction (TRS) Override by Account Code
1.8.3 Budget Management
1.8.4 Extension Lock .
1.8.5 Walking COS.
1.9 Automatic Route Selection (ARS) Features.
1.9.1 Automatic Route Selection (ARS)
1.10 Conversation Features
1.10.1 Hands-free Operation.
1.10.2 Room Monitor
1.10.3 Microphone Mute
1.10.4 Headset Operation .
1.10.5 Data Line Security
1.10.6 Flash/Recall
1.10.7 External Feature Access (EFA)

1.10.8 Outside (CO) Line Call Limitation
1.10.9 Parallelled Telephone
1.10.10 Calling Party Control (CPC) Signal Detection
1.11 Transferring Features.
1.11.1 Call Transfer
1.12 Holding Features
1.12.1 Call Hold
1.12.2 Call Park .
1.12.3 Call Splitting.
1.12.4 Music on Hold

1.12.5 Consultation Hold
1.13 Conference Features
1.13.1 Conference Features
1.13.1.1 Conference Features—OVERVIEW
1.13.1.2 Conference
1.14 Paging Features
1.14.1 Paging .
1.15 Optional Device Features
1.15.1 Doorphone Call
1.15.2 Door Open.
1.15.3 Doorbell/Door Chime.
1.15.4 Background Music (BGM)
1.15.5 Outgoing Message (OGM) for DISA/UCD
1.15.6 Direct Inward System Access (DISA)
1.15.7 Built-in Voice Message (BV)
1.16 Caller ID Features.
1.16.1 Caller ID.
1.16.2 Incoming Call Log
1.17 Message Features
1.17.1 Message Waiting .
8 Feature Guide
1.17.2 Absent Message
1.17.3 Fixed Line SMS Terminal Support
1.18 Proprietary Telephone (PT) Features
1.18.1 Fixed Buttons
1.18.2 Flexible Buttons
1.18.3 LED Indication
1.18.4 Display Information.
1.19 Voice Mail Features.
1.19.1 Voice Mail APT Integration.
1.19.2 Voice Mail Inband (DTMF) Integration
1.20 Administrative Information Features
1.20.1 Station Message Detail Recording Feature
1.20.1.1 Station Message Detail Recording (SMDR)
1.20.1.2 Call Log Printout for Each Extension.
1.20.2 Call Charge Calculation
1.21 Extension Controlling Features.
1.21.1 Extension Feature Clear

1.21.2 Timed Reminder.
1.22 Audible Tone Features.
1.22.1 Dial Tone
1.22.2 Confirmation Tone
2 System Configuration and Administration Features
2.1 System Configuration—Hardware.
2.1.1 Extension Jack Configuration.
2.2 System Configuration—Software
2.2.1 Class of Service (COS)
2.2.2 Group
2.2.3 Time Service
2.2.4 Operator/Manager Features.
2.3 System Data Control
2.3.1 PC Programming.
2.3.2 PT Programming
2.3.3 Automatic Time Adjustment
2.3.4 Feature Numbering
2.3.5 Automatic Configuration for Outside (CO) Line Type
2.3.6 Country Setting
2.3.7 Firmware Upgrade

2.4 Fault Recovery/Diagnostics
2.4.1 Power Failure Transfer.
2.4.2 Power Failure Restart

Optional Card Required For KX-TES824

  • Port Analogue CO Line and 8-Port Hybrid Extension Card (KX-TE82483)
  • 2-Port Analogue CO Line and 8-Port SLT Extension Card (KX-TE82480)
  • 8-Port SLT Extension Card (KX-TE82474)
  • 3-Port Caller ID Card (KX-TE82494)
  • 2-Port Doorphone Card (KX-TE82460)
  • 4-Port Doorphone Card (KX-TE82461)
  • Message Expansion Card for DISA/UCD OGMs (KX-TE82491)
  • 2-Channel Voice Message Card (KX-TE82492)

Telepon Panasonic yang support dengan Pabx panasonic KX-TES824


  • SLT Telepon Panasonik KX-TS 500
  • SLT Telepon Panasonic KX-TS 505
  • SLT Telepon Panasonic KX-TS 2371
  • SLT Telepon Panasonic KX-TS 2373
  • SLT Telepon Panasonik KX-TS 2375
  • SLT Telepon Panasonic KX-TSC 11
  • SLT Telepon Panasonic KX-TS 880
  • Key Telepon Panasonic KX-T 7730
  • Key Telepon Panasonic KX-T 7750
  • Key Telepon Panasonic KX-T 7730

HARGA PABX KX-TES824, CARD OPTIONAL DAN TELEPON PANASONIC (silahkan Klik LINK)

Harga Pabx Panasonic KX-TES824 dan Harga Card Optional Panasonic
Harga Telepon Fax Panasonic

Hasil Pencarian Pabx Panasonic KX-TES824 : Harga Pabx Panasonic 810,000, Daftar Harga Pabx 615,000,Pabx Panasonic Termurah 429,000, Harga Pabx termurah 259,000, Harga pabx panasonic yang paling murah 131,00, Harga Pabx Panasonic KX-TES824 44,700, Agent / Dealer pabx Panasonic Jakarta, Bandung, Jogja. Keterangan lengkap produk Pabx Panasonic KX-TES824, Fitur (Fetaures List), kapasitas Sistem (System Capacity), Perangkat Tambahan (Option), Harga Pabx (Price List)

Panasonic KX-TDA 30/100/200/600, KX-TDE100/200
Options Card Panasonic KXTDA/KXTDE
List Option's Card For Pabx Panasonic KX-TDA 30/100/200/600, KX-TDE100/200 Model No And Description

Model No. Description TDE100 TDE200 TDA30 TDA100 TDA200 TDA600
KX-A228 S/M-type Back-up Battery Cable Battery Cable
KX-A229 L-type Back-up Battery Cable Battery Cable
KX-A258 Blank Slot Cover Blank Slot Cover
KX-TDA0103 L-type Power Supply Unit PSU-L
KX-TDA0104 M-type Power Supply Unit PSU-M
KX-TDA0105 Memory Expansion Card MEC
KX-TDA0108 S-type Power Supply Unit PSU-S
KX-TDA0161 4-Port Doorphone Card DPH4
KX-TDA0162 2-Port Doorphone Card (German Type) DPH2
KX-TDA0164 4-Port External Input/Output Card EIO4
KX-TDA0166 16-Channel Echo Canceller Card ECHO16
KX-TDA0168 Extension Caller ID Card EXT-CID
KX-TDA0170 8-Port Digital Hybrid Extension Card DHLC8
KX-TDA0171 8-Port Digital Extension Card DLC8
KX-TDA0172 16-Port Digital Extension Card DLC16
KX-TDA0173 8-Port SLT Ext Card SLC8
KX-TDA0174 16-Port SLT Ext Card SLC16
KX-TDA0175 16-Port SLT Ex with Message Lamp Card MSLC16
KX-TDA0177 16-Port SLT Ext Card with Caller ID CSLC16
KX-TDA0180 8-Port Analogue Trunk Card LCOT8
KX-TDA0181 16-Port Analogue Trunk Card LCOT16
KX-TDA0182 8-Port DID Card DID8
KX-TDA0183 4-Port Analogue Trunk Card LCOT4
KX-TDA0184 8-Port E & M Trunk Card E&M8
KX-TDA0187 T-1 Trunk Card T1
KX-TDA0188 E-1 Trunk Card E1
KX-TDA0189 8-Port Caller ID/Pay Tone Card CID/PAY8
KX-TDA0190 Optional 3-Slot Base Card OPB3
KX-TDA0191 4-Channel Message Card MSG4
KX-TDA0193 8-Port Caller ID Card CID8
KX-TDA0196 Remote Card RMT
KX-TDA0284 4-Port BRI Card BRI4
KX-TDA0288 8-Port BRI Card BRI8
KX-TDA0290 PRI Card (PRI23) PRI23
KX-TDA0290CE/CJ PRI Card (PRI30) PRI30
KX-TDA0410 CTI Link Card CTI Link Card
KX-TDA0470 16-Channel VoIP Extension Card IP-EXT16
KX-TDA0484 4-Channel VoIP Gateway Card IP-GW4E
KX-TDA0490 16-Channel VoIP Gateway Card IP-GW16
KX-TDA0820 Memory Card for Software Upgrade SD
KX-TDA0920 Memory Card for Software Upgrade  SD
KX-TDA6105 Memory Expansion Card EMEC
KX-TDA6110 Bus Master Card BUS-M
KX-TDA6111 Bus Master Expansion Card BUS-ME
KX-TDA6166 16-Channel Echo Canceller Card EECHO16
KX-TDA6174 16-Port SLT EXT Card ESLC16
KX-TDA6175 16-Port SLT Ext with Message Lamp Card MSLC16
KX-TDA6181 16-Port Analogue Trunk Card ELCOT16
KX-TDA620 Expansion Shelf Expansion Shelf
KX-TDA6201 Mounting Kit for expanding  Mounting Kit
KX-TDA6920 Memory Card for Software Upgrade  SD
